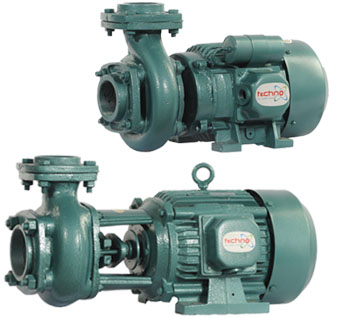

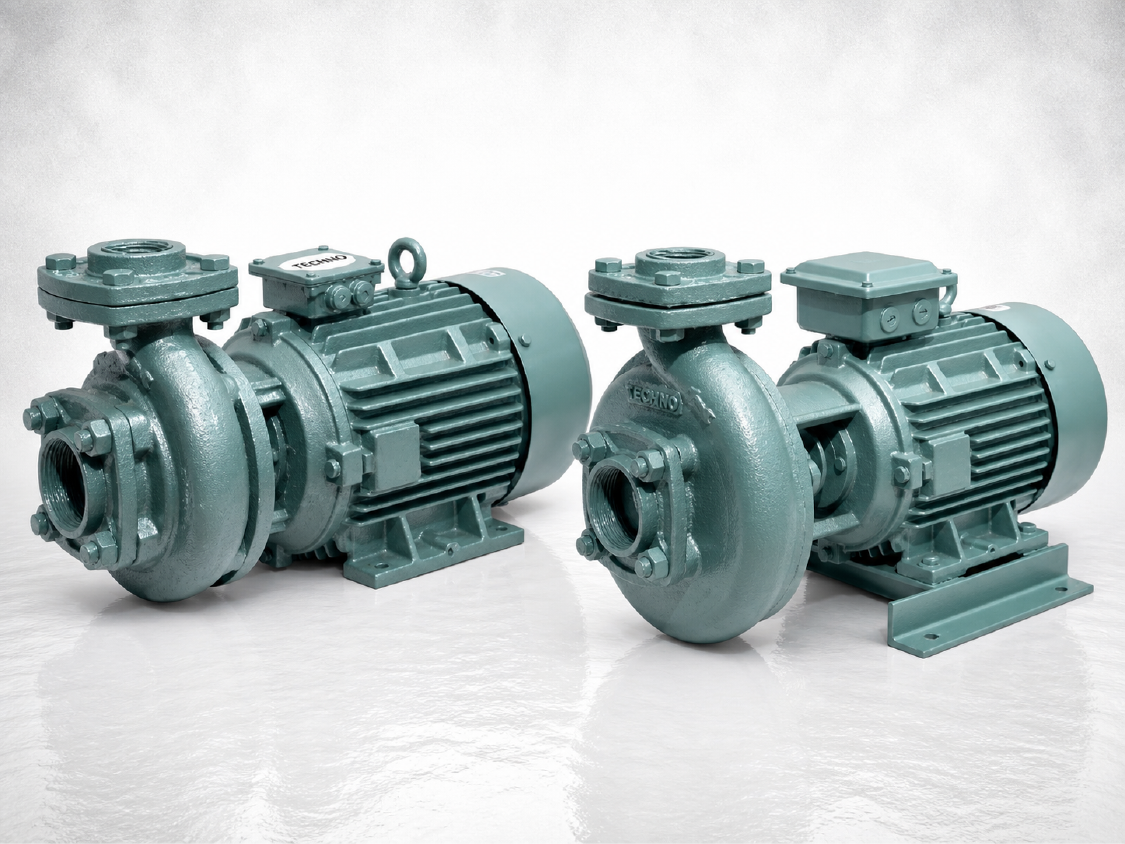

CENTRIFUGAL MONOBLOCK SERIES

CENTRIFUGAL MONOBLOCK SERIES

Easy installation with low operating costs, ensuring user convenience and efficiency. Designed for improved efficiency and minimal maintenance, with the pump and motor operating on a common shaft. Dynamically balanced rotors and impellers provide smooth, vibration-free performance and extended service life. Equipped with deep groove ball bearings, packed with the optimal quantity of special grease for long-lasting and reliable operation. Subjected to rigorous quality control at every stage of manufacturing, ensuring consistent performance and high efficiency. Operates at low temperatures, with Class A / Class E insulation, ensuring safe and trouble-free performance over time. Fitted with Thermal Overload Protector (TOP) for enhanced motor safety and protection.

Specification Single Phase Three Phase
Power (H.P.) 0.5 HP – 2.0 HP 3.0 HP – 50 HP
Versions 240 Volts +6% / -15%, 50 Hz Duty S1 415 Volts +6% / -15%, 50 Hz Duty S1
Speed (N) 2880 RPM
Discharge Range (LPM) 20 LPM – 650 LPM 300 LPM – 3300 LPM
Head Range (Mtrs.) 5 – 35 Mtrs 20 – 70 Mtrs
Pipe Size (MM)       32 x 25, 40 x 40
50 x 40, 65 x 50, 75 x 65
75 x 75, 100 x 75, 100 x 100
Suction Lift 7 Mtrs

Applications

  • Irrigation
  • Drinking water supply
  • Industrial water supply
  • Cooling water circulating systems
