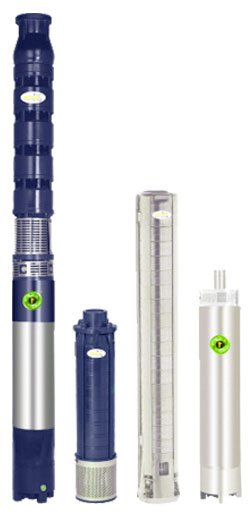

6" WATER LUBRICATED PUMPSETS

Techno, 6' Oil & Water Lubricated Pumpsets, submersible pump, submersible pump manufacturers, Ahmedabad, Gujarat, India

Product features

  • Available in Radial Flow and Mixed Flow Impeller.
  • Special LTB-4 and nitrile rubber bearing bushes for high wear resistance and longer life.
  • Incorporated with NRV with minimum friction
  • Easily rewindable.
  • Stainless steel stator shell to prevent rust formation.
  • Specially designed carbon thrust bearing.
  • High quality seal rings and sand guards to protect motor from sand entry.
  • High quality water-resistant polymer insulated wires for longer life.
  • Pressure diaphragm to compensate excess pressure due to heating of filled water.
  • 50' Pump in CI & SS with norly & SS Impeller.

Technical Data

Particular Regular 50 Feet (CI & SS) Radial flow
Power ( H.P.) 3 HP - 40 HP 3 HP - 30 HP
Stage 2 - 30 3 - 30
Discharge Range (LPM) 32 LPM -1800 LPM 50 LPM -1000 LPM
Head Range (Metres) 5 - 390 Mtrs 5 - 430 Mtrs

Applications

  • Domestic & Community water supply
  • Industries
  • High Rise Buildings
  • Agriculture
  • Dairies
  • Fire Fighting Systems
  • Cooling water circulating systems

Available in closed winding single piece SS body & also in open winding (3 piece i.e t-bolt type).

Complete SS 304 motor is also available on demand
