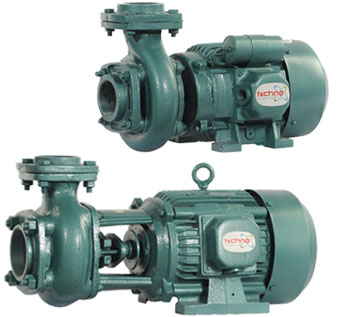

CENTRIFUGAL MONOBLOCK SERIES
Product features
- Easy to install and low operating cost.
- Improved efficiency and minimal maintenance by having the set operated on a common Shaft.
- Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
- Deep groove ball bearings packed with right quantity of special grease ensures long life.
- Rigorous quality control testing at every stage of manufacturing ensures higher efficiency.
- Low temperature with Class A/ Class E insulation ensures long trouble free operation.
- Fitted with TOP.
Technical Data
| Power (H.P.) | Single Phase | 0.5 HP - 2.0 HP |
| Three Phase | 3.0 HP - 50 HP | |
| Versions | Single Phase | 240 volts +6% -15% 50 Hz DUTY S1 |
| Three Phase | 415 volts +6% -15% 50 Hz DUTY S1 | |
| Speed ( N ) | 2880 RPM | |
| Discharge Range ( LPM ) | Single Phase | 20 LPM - 650 LPM |
| Three Phase | 300 LPM - 3300 LPM | |
| Head Range ( Mtrs ) | Single Phase | 5 - 35 Mtrs |
| Three Phase | 20 - 70 Mtrs | |
| Pipe Size ( MM ) | Single Phase | 32 X 25, 40 X40 |
| Three Phase | 50 X 40, 65 X 50, 75 X 65 75 X 75, 100 X 75, 100 X 100 |
|
| Suction Lift | 7 Mtrs. |
Applications
- Irrigation
- Drinking water supply
- Industrial water supply
- Cooling water circulating systems
