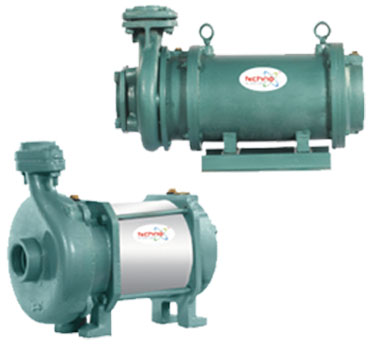

HORIZONTAL OPENWELL SERIES

Product features

  • Easy to install
  • Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.
  • The open well submersible monoblock can be placed at the bottom of the well.
  • This arrangement does not require suction pipe.
  • Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
  • Water can also be drawn from a bore well which is bored at the bottom of the open well by inserting a suction pipe into the bore well and providing a cooling tank arrangement to keep the monoblock submerged in water.

Technical Data

Power (H.P.) Single Phase 0.5 HP - 3.0 HP
Three Phase 1.0 HP - 40 HP
Versions Single Phase 240 volts   +6%  -15% 50 Hz DUTY S1
Three Phase 415 volts   +6%  -15% 50 Hz DUTY S1
Speed ( N ) 2880 RPM
Discharge Range ( LPM ) Single Phase 20 LPM - 650 LPM
Three Phase 50 LPM - 2800 LPM
Head Range ( Mtrs ) Single Phase 10 - 35 Mtrs
Three Phase 20 - 70 Mtrs
Pipe Size ( MM ) Single Phase 32 X 25, 40 X40
Three Phase 40 X 40, 50 X 40, 65 X 50, 75 X 65
75 X 75, 100 X 75, 100 X 100

Applications

  • Irrigation
  • Drinking water supply
  • Industrial water supply
  • Cooling water circulating systems
