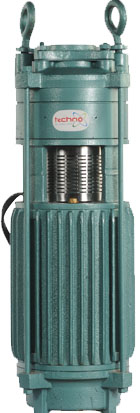

VERTICAL OPENWELL PUMP
Product features
- Easy to install
- Enhanced efficiency with all the advantages of mounting the prime mover and pump integrally on the same shaft.
- The multistage vertical open well submersible monoblock can be placed at the bottom of the well. This arrangement does not require suction pipe.
- Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
- Water can also be drawn from a borewell which is bored at the bottom of the openwell by inserting a suction pipe into the borewell and providing a cooling tank arrangement to keep the monoblock submerged in water.
Technical Data
| Power (H.P.) | Single Phase | 0.5 HP - 3.0 HP |
| Three Phase | 3.0 HP - 3 0 HP | |
| Versions | Single Phase | 240 volts +6% -15% 50 Hz DUTY S1 |
| Three Phase | 415 volts +6% -15% 50 Hz DUTY S1 | |
| Speed ( N ) | 2880 RPM | |
| Discharge Range ( LPM ) | Single Phase | 20 LPM - 650 LPM |
| Three Phase | 300 LPM - 2500 LPM | |
| Head Range ( Mtrs ) | Single Phase | 5 - 35 Mtrs |
| Three Phase | 20 - 70 Mtrs |
Applications
- Irrigation
- Drinking water supply
- Industrial water supply
- Cooling water circulating systems
